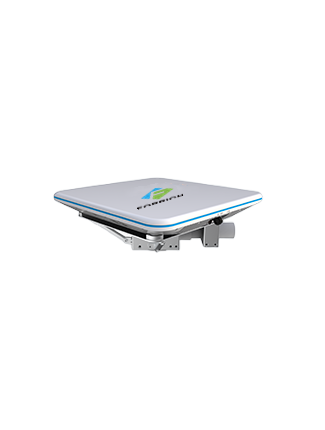

Airborne ESA
Compact size, highly integrated.
Quick deploy.
Smart technology.
Description
Description
With the increasing demand of satellite coverage, FORRICH provides different types of phased array satcom terminals to meet different needs. For LEO,MEO and HEO satellite communication in Ka and Ku band, we have a serial of terminals that can be easily installed in planes, helicopters as well as all kinds of ships and vehicles, making sure data transfer and download can be stable and quick. For other personal uses, our portable terminals will definitely surprise you.
Key Features and Benefits
1.High integration: Compared with traditional products on the market, volume has been reduced by 90%, weight by 60% and profile by 80%.
2.Low cost: The products have been updated for three generations. The performance has been keeping improved, but the price keeps the same.
3.MMW RF front-end chip: We have made breakthroughs in key technical issues such as precise regulation of phased array amplitude and channel consistency and we already have independent intellectual property rights.
4.Easy to use: One button to start the machine and solve all your communication concerns.
Specification
| Satellite Communication | Model | FEM280ah |
| Receiving frequency | 17.8GHz ~ 21.2GHz | |
| Transmission frequency |
27.5GHz ~ 31.0GHz
|
|
| Input frequency of medium frequency | 1.40GHz ~ 2.40GHz | |
| Output frequency of medium frequency | 0.95GHz ~ 2.15GHz | |
| Polarization mode | circular polarization | |
| Scanning angley | off-axis angle:0-70° azimuth angle:0-360° | |
| Tracking accuracy | ≤ 0.2 ° | |
| Input voltage | 28VDC | |
| Dimensions | 575×605×71(mm) | |
| Weight | ≤15kg | |
| Working temperture | -40 ℃ ~ 70 ℃ | |
| Storage temperture | -55 ℃ ~ 85 ℃ | |
| Relative humidity | 10%~ 95% (35 ℃) | |
| Protection standard | IP66 |
