HUB5000
Wide bandwidth: fast transmission
Narrow wave beam: anti-interference
Flexible frame structure
Description
Description
Cascading, cell splitting and merging supported
1、Support multi-cascade. A maximum of 2 levels of cascading, and a maximum of 8 remote radio frequency units can be connected to one HUB.2、Flexible connection distance. The maximum support for BBU to HUB is 20KM, and HUB to AAU is 200M.
3、Strong power supply capacity. Single port is 130W power supply and a total of 1300W power supply capacity.
4、Mutliple ports. There are 12 SPF28 optical ports, 9 RJ45 electrical ports, 1 USB port and 1 SMA antenna interface, etc.
5、High interface rate. 12 optical ports with10G/25G
6、Support cell splitting and merging. Flexible adjustment of cells through software to achieve capacity expansion and coverage enhancement.
Specification
|
Specification |
|
|

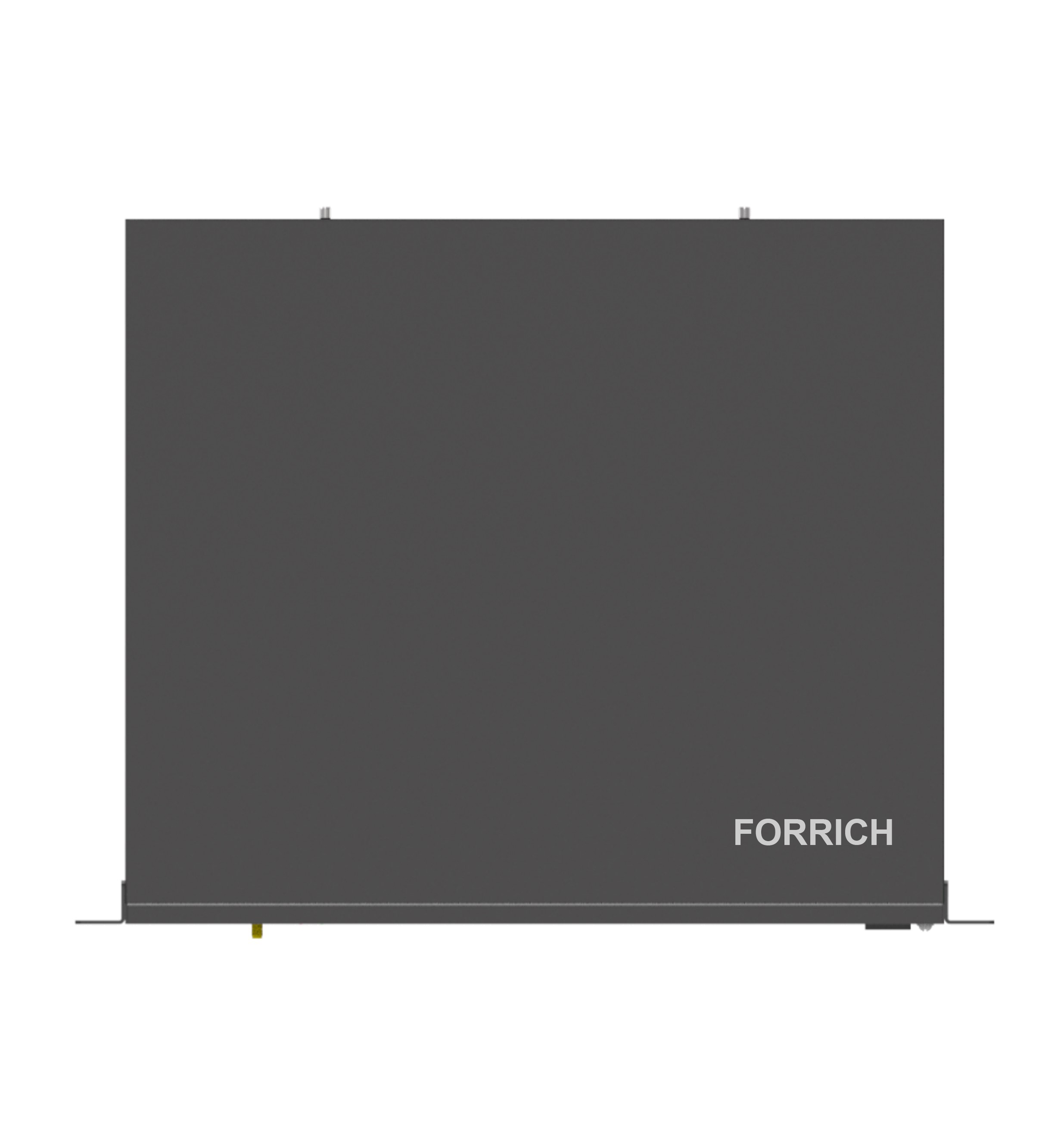

Dimensions |
430mm(W)*370mm(D)*44.5mm(H), 19-inch standard cabinet supported |
|
Overall Volume |
7L |
|
Port Capability |
2*10G/25Gbps SFP+（backhaul） 8*10G/25Gbps SFP+（fronthaul） 2*10G/25Gbps SFP+（cascade） |
|
Cell Combination |
≤8 AAUs can be combined into a single cell |
|
Cascade Capability |
≤2 levels of cascading supported |
|
Power Input |
220V AC |
|
Power Output |
Photoelectric composite cable, -48V DC direct current supported |
|
Typical Power Consumption |
70W |
|
Power Distribution Capacity |
8*150W |
|

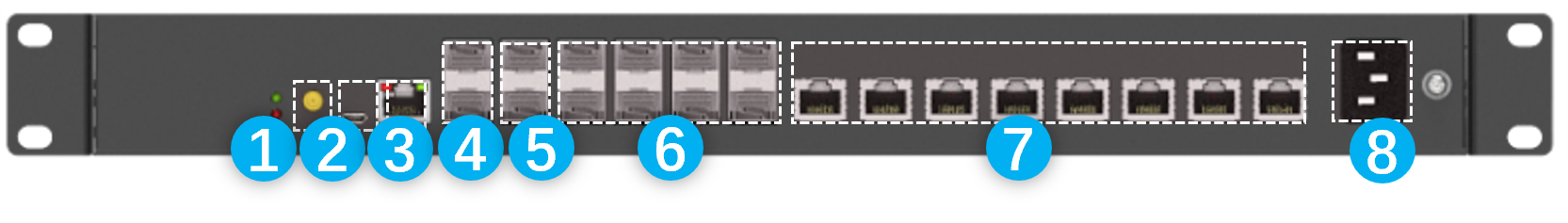

① |
SMA |
1，GNSS antenna port |
|
② |
MICRO-USB |
1，debug serial port |
|
③ |
RJ45 |
1，debug network port (100M/1000M adaptive) |
|
④ |
SFP28 |
2，BBU port |
|
⑤ |
SFP28 |
2，cascade with HUB |
|
⑥ |
SFP28 |
8，AAU port |
|
⑦ |
RJ45 |
8，-48V DC power supply, single interface ≤150W |
|
⑧ |
220V Electrical Port |
voltage range 180V AC~264V AC |
