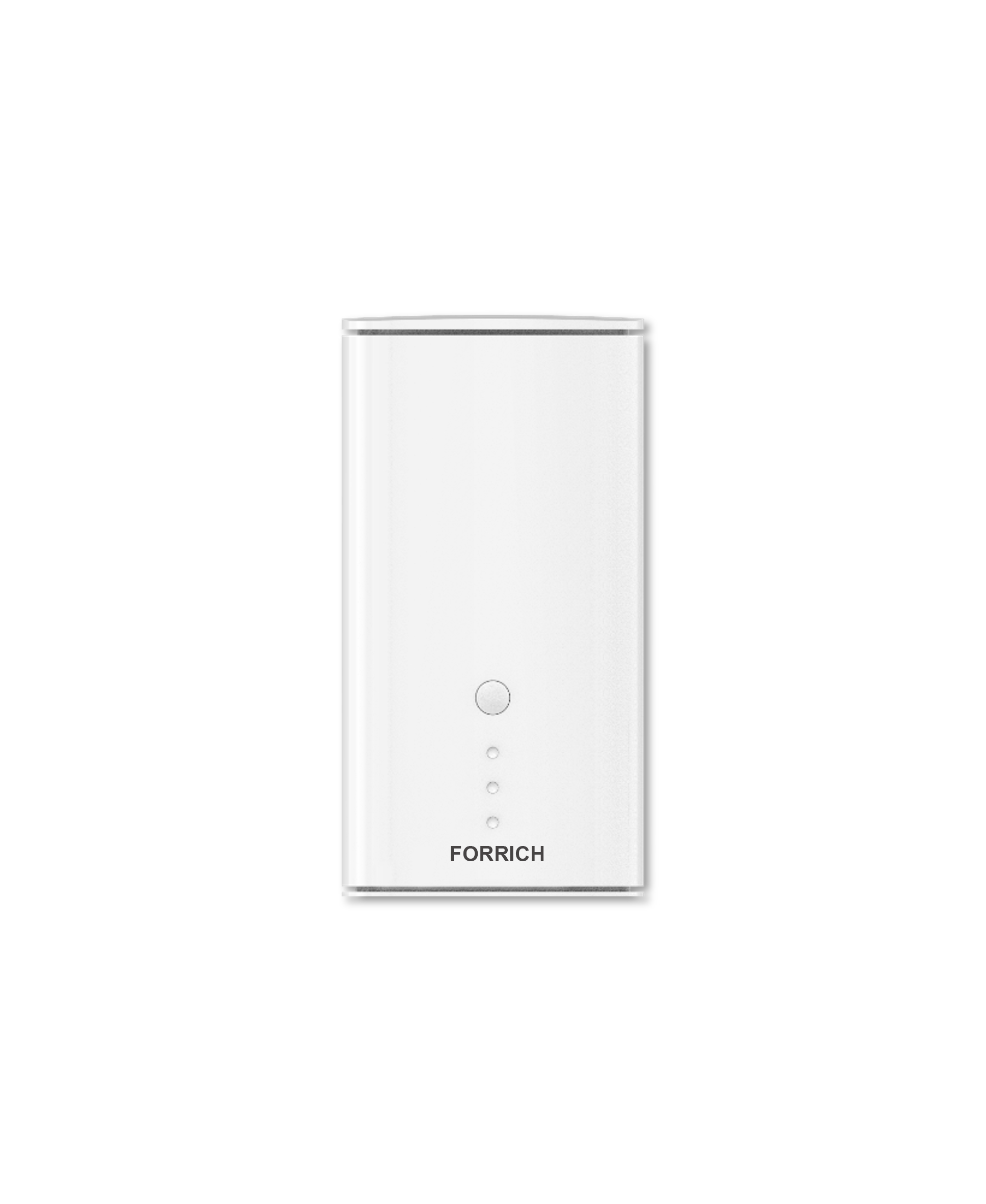

Flex CPE
Description
Description
Specification
| Basic Info | Model | ODU（Outdoor CPE） | |
| Dimensions | 208.5mm×176.0mm×55.0mm(cooling fins) | ||
| Weight | 1.5KG | ||
| Color | White | ||
| Air Interface | Technology | Sub6G-mmWave NR-DC, Sub6G SA, NSA, LTE, WCDMA | |
| Frequency | 5G mmWave | N257/N258 | |
| 5G Sub6G | N78 | ||
| LTE- FDD | B1/B3/B5/B7/B8 | ||
| WCDMA | B1 | ||
| Hardware | MIMO | DL 4x4 MIMO supported | |
| Chip | Qualcomm SDX65 | ||
| Bandwidth | 800MHz(max) | ||
| EIRP | mmWave ERIP: 45dBm | ||
| USIM/SIM | 1*4FF SIM (nano card) | ||
| Memory | 8Gb NAND + 8Gb LPDDR4 | ||
| Consumption | <85W(max) | ||
| Network port | 1 LAN: 10G (AQC113CS） | ||
| Power Supply | POE ( standard 802.3AF/AT/BT) | ||
| LED | LED*3: 5G/4G/LAN | ||
| USB | USB3.1 *1 | ||
| Antenna | Internal Antenna: 5G/4G*4 , QTM547*4 Antenna Array:2x2, MIMO,32/64 elements |
||
| Button | Reset hole | ||
| ESD | ESD Protection circuit；8kV contact / 10kV air discharge. | ||
| Software | BLE app | BLE supported | |
| SW Update | Local Update | ||
| APN | Automatic APN Matching According to USIM | ||
| IP-Passthrough | Supported | ||
| FOTA | Supported | ||
| IPv4 | IPv4 supported | ||
| IPv6 | IPv6 supported | ||
| UI | WebUI | ||
| Data Statistics | Supported | ||
| SNTP | Supported | ||
| HTTP | Supported | ||
| HTTPS | Supported | ||
| Web Upgrade | Supported | ||
| TR069 | Supported | ||
| Certification | Certification | Based on customers’ requirements | |
| Environment | Installation | Can be customized | |
| Protection Standard | IP67 | ||
| Working Temperature | -40°C to +50°C | ||
| Storage Temperature | -40°C to +80°C | ||
| Humidity | 5%~ 95% | ||
| Lightning Protection | ETSI EN301489-1/ EN301489-50 | ||
