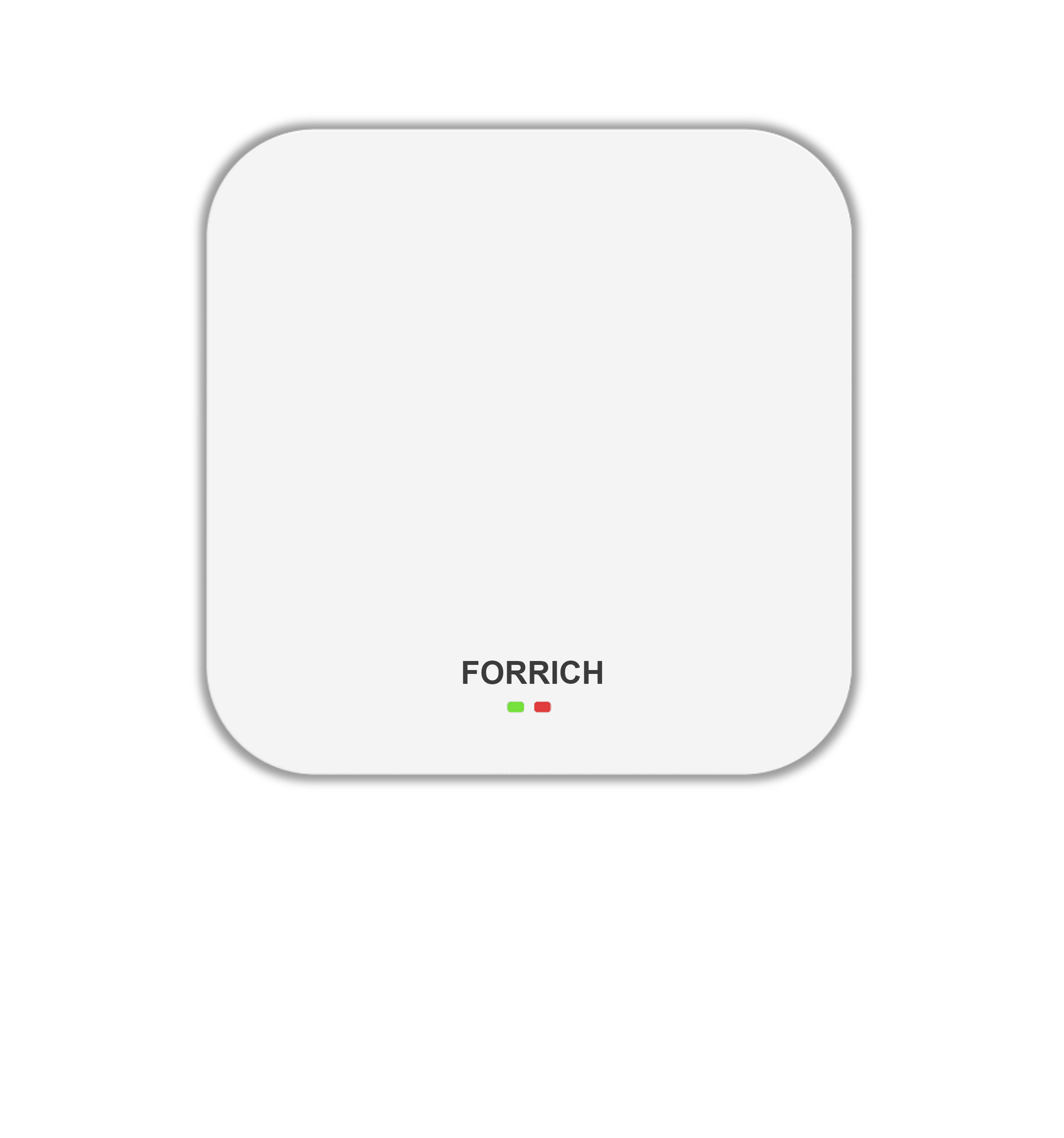

AAU-MM26Pro
Wide bandwidth: fast transmission
Narrow wave beam: anti-interference
Flexible frame structure
Description
Description
Large-capacity millimeter wave remote radio frequency unit
1、Excellent performance and adaptability. With comprehensive and cost-effective performance ,the lightweight design meets various scenarios' need.2、Open interface. The interface adopts O-RAN7-2 open design, which can be connected with any existing BBU.

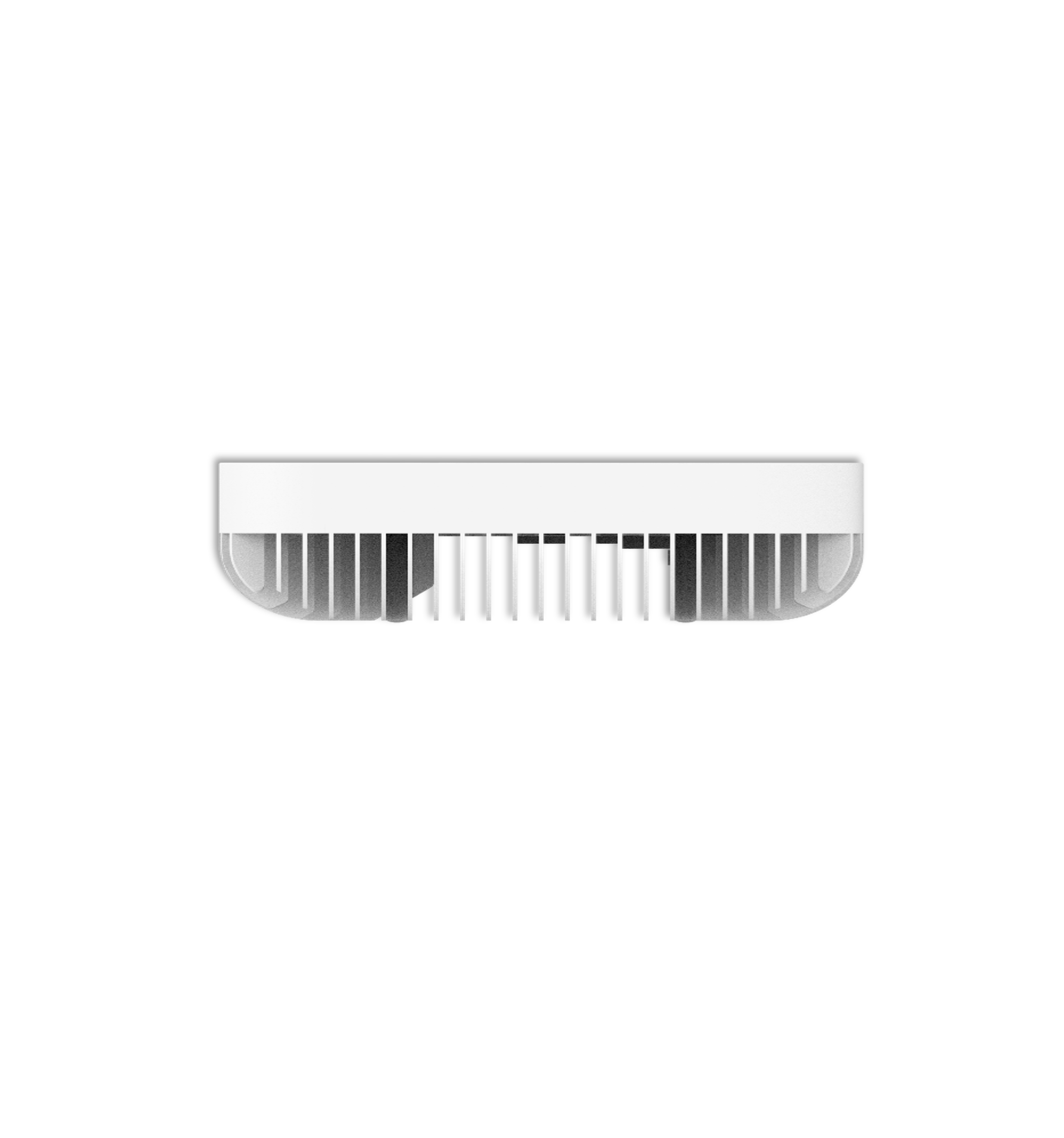

3、Green and energy-saving design. It adopts a new heat dissipation design, large bandwidth CFR wave suppression, system energy saving and high linearity.
4、Flexible installation. Distributed layout, easy installation, remote access through photoelectric composite cables, avoiding property problems.
Specification
| Working Frequency | 24.25-29.5GHz(n257&n258) |
| Channels Quantity | 2T2R,2*2MIMO |
| Carrier Bandwidth | 200MHz |
| Modulation | downlink: 256QAM, uplink: 64QAM |
| EIRP | ≥32dBm@256QAM, ≥37dBm@64QAM |
| Typical Power Consumption | ≤65W |
| Weight | ≤2.5 kg |
| Dimensions | 223mm(W)*223mm(D)*78.5mm(H) |
| Input Voltage | -48V DC photoelectric composite cable power supply |
| Network Cable Configuration | photoelectric composite cable, maximum distance: 200M |
| Total Transmit Power | ≤30dBm |
| ACLR | ≥28dB |
| Interface | 2*25G SFP (CPRI) optical port |
| Scanning Range | horizontal ≥ ± 45°, vertical ≥ ± 45° |
